board_data_structs.hpp File Reference

Constants, typedefs, and simple structs used by gameboard::GameBoard. More...

#include <array>
#include <cassert>
#include <gameboard/game_piece.hpp>
#include <utilities/integer_types.hpp>
#include <random>
#include <vector>

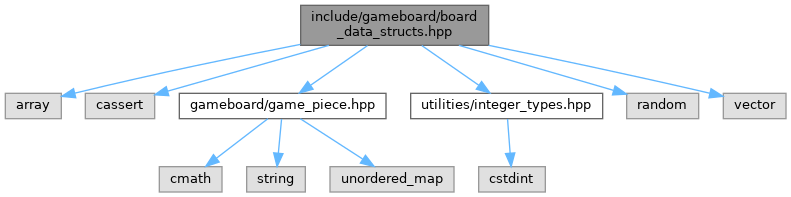

Include dependency graph for board_data_structs.hpp:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	gameboard::CastleEdges
	Defines a castle feature in terms of its min / max rank and file. More...
struct	gameboard::BoardDirection
	Descirbes a direction on a gameboard::GameBoard.board_map_. More...
struct	gameboard::BoardSpace
	A pair of coordinate (rank, and file) with properties determined by comparison with values of gameboard features: board size, river locations, and castle locations. More...

Namespaces
namespace	gameboard
	Tracking piece positions and determining legal moves.

Typedefs
typedef array< array< GamePiece, kNumFiles >, kNumRanks >	gameboard::BoardMap_t
	2-D array of gameboard::GamePiece objects.
typedef array< array< int, kNumFiles >, kNumRanks >	gameboard::BoardMapInt_t
	2-D array of integers; can be converted to gameboard::BoardMap_t using gameboard::int_board_to_game_pieces.
typedef array< BoardSpace, 9 >	gameboard::Castle_t

Functions
PieceColor	gameboard::opponent_of (PieceColor color)
constexpr Castle_t	gameboard::calc_castle_spaces (const CastleEdges &edges)
constexpr Castle_t	gameboard::red_castle_spaces ()
constexpr Castle_t	gameboard::black_castle_spaces ()
BoardMap_t	gameboard::int_board_to_game_pieces (const BoardMapInt_t int_board)
bool	gameboard::is_occupied (const BoardMap_t &board_map, const BoardSpace &space)
PieceColor	gameboard::get_color (const BoardMap_t &board_map, const BoardSpace &space)
PieceType	gameboard::get_type (const BoardMap_t &board_map, const BoardSpace &space)
BoardSpace	gameboard::get_general_position (const BoardMap_t &board_map, const PieceColor color)
vector< BoardSpace >	gameboard::get_all_spaces_occupied_by (const BoardMap_t &board_map, const PieceColor color)

Variables
const BoardIndexType	gameboard::kNumRanks = 10
const BoardIndexType	gameboard::kNumFiles = 9
const BoardIndexType	gameboard::kRedRiverEdge = 5
const BoardIndexType	gameboard::kBlackRiverEdge = 4
constexpr CastleEdges	gameboard::kRedCastleEdges = {7, 9, 3, 5}
constexpr CastleEdges	gameboard::kBlackCastleEdges = {0, 2, 3, 5}

Detailed Description

Constants, typedefs, and simple structs used by gameboard::GameBoard.

Definition in file board_data_structs.hpp.
